Model No- NSC-GPR-SD-04-00

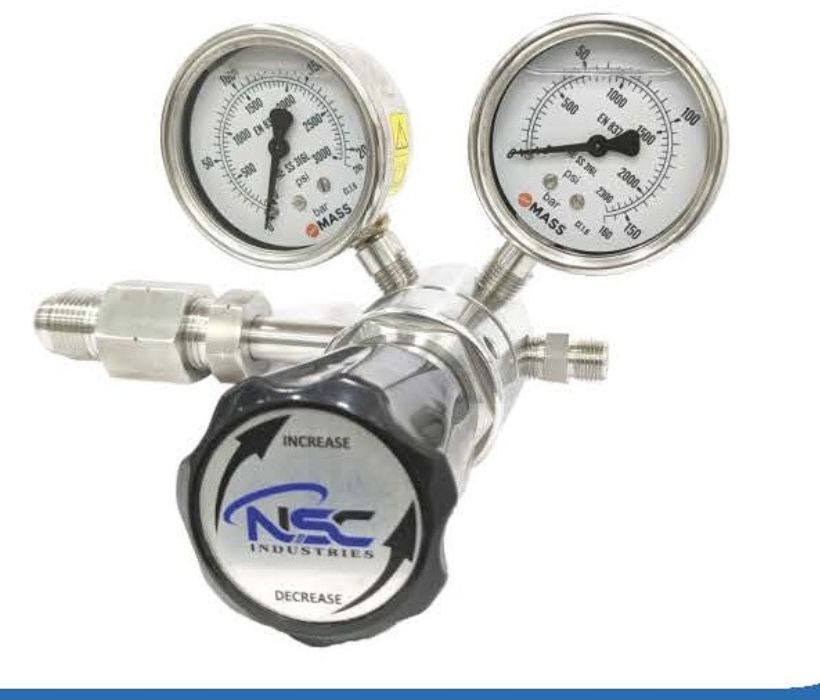

Single Stage General Purpose Regulators Model No –NSC-RG6-GP-04-00
The provides a compact and economical solution for controlling pressures up to 180 bar on low flow applications. Ideal for first stage pressure let down where basic pressure control is required. A small piston sensing element allows low torque adjustment with a range of springs with fine pressure adjustment.
Features
- Compact & light weight
- Designed to minimize contamination and provide accurate regulation of any corrosive, non-corrosive, or toxic gas
- Brass model provides added economy for control of non-corrosive media
- Metal-to-metal diaphragm to body seal ensures minimum inboard and outboard leakage
- 3000 PSIG / 206.8 bar inlet
- Outlet pressure ranges: 0-100 psi
- Spring loaded pressure reducing regulator.
- Flow coefficient: 0.06
- Working pressure-0-100psig
Options
- Metal to metal diaphragm sealing
- Sealing area protected and centralized
- on the body of the regulator
- High Accuracy
- Pressure gauges
Application
- Gas and Liquid Analyzer Systems
- Gas Cylinder Regulator Assemblies
- Portable Calibration Kits
- Laboratories & Research Labs
- Low Pressure Hydraulic Systems
