Manifold Valves
3 Valve Manifold
Three value Manifold Remote Mount ( pipe x pipe)
Designed for applications to facilitate remote mounting of differential pressure Instruments. Dimensions shown above are for the standard 54 mm or 2 1/8-Inch Instrument connection. Centre distance found in majority of Instruments. The
Three Valve Manifold Remote manifold is also available for Instruments with Mount (Pipe x Pipe)
Three Valve Manifold Bar Type Direct Mount (Pipe x Flange)
Three Valve Manifold Direct Mount T Type (Pipe x Flange)
other centre distances for instrument connections (as 55 mm, 56 mm and 57 mm) but dimensions shown will vary. Please consult us for the dimensions. Useful for Installations in remote fields eliminating conventional method of piping.

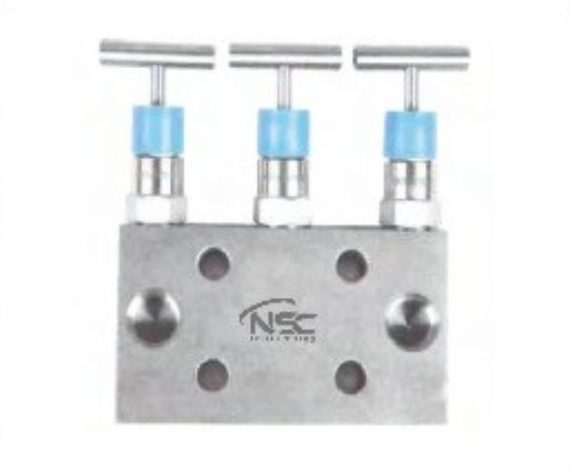

Three value Manifold Bar type direact Mount ( pipe x flange)
Dealgned for direct mounting on to standard differential pressure transmitters. This manifold block Incorporates three valves, two main process Isolation valvea and one equalizing valve. This design is suitable where the straight valve may foul with the Instrument and to provide ease of operation. Dimensions are for the standard 54
mm or 2 1/6-Inch Instrument connection centre distance found in majority of Instruments. The manifold is also available for Instruments with other centre distances for Instrument connections (as 55 mm, 56 mm and 57 mm) but dimensions shown will vary.

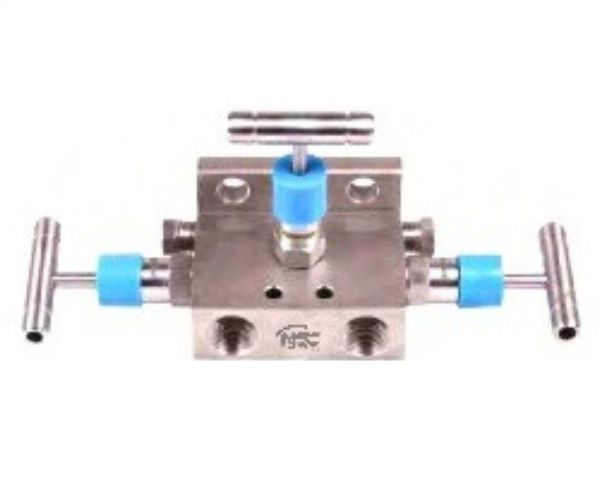

Three value Manifold direact Mount T type( pipe x flange)
Designed for direct mounting on to standard differential pressure transmitters. This manifold block Incorporates three valves, two main process leolation valvee and one equalizing valve. Dimensions are for the standard 54 mm or 2 1/8- Inch Instrument connection centre distance found In majority of Instruments. The manifold is also available for Instruments with other centre distances for Instrument connections (as 55 mm, 56 mm and 57 mm) but dimensions shown will vary.
Manifold Valves
Multiport Gauge Valves

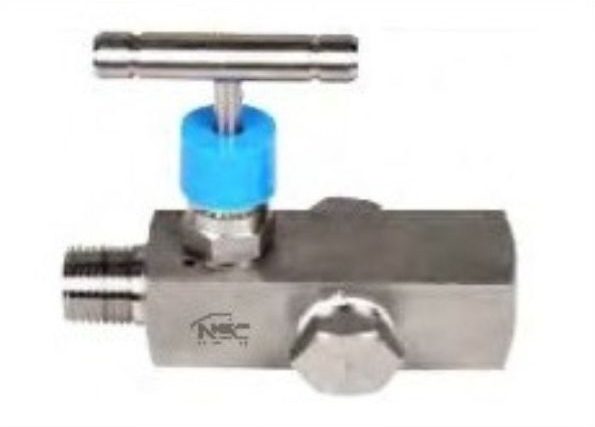

Mukiport gauge valve la designed for giving the user flexibility in positioning of gauges or pressure switches. These valves can be supplied with vent valve and blanking plug separately.
Single Block & Beeds Gauge Valves

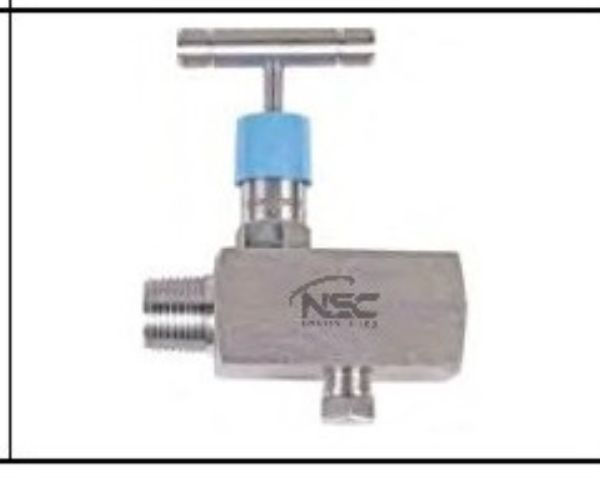

Needle Valve with downstream vent for usage with Static Pressure Gauge and Instrument Installation for Isolation and venting.
